Trustworthy JSON: schema-validate your model's structured output

July 1, 2026 · 14 min read

NLP Engineer & Tech Writer at WiLine

"Return only JSON" is one of the most common instructions in production LLM apps — and one of the least reliable. Models wrap JSON in markdown fences, add a friendly sentence, or (if they're reasoning models) narrate their entire thought process around it. Any of those breaks a strict JSON.parse, and your pipeline falls over.

In this guide we build a Promptfoo eval that makes WEC Inference API models classify support tickets into schema-validated JSON, then harden it against real-world messiness — and use it to pick a model you can actually trust. This is part 2 of the evals series (see part 1 for first-run setup). Everything here was run live against https://inference.wiline.com.

How the eval works

Every test runs through the same pipeline. The detail that matters most: the transform runs on the model's output before the assertion sees it — that's what lets us recover messy JSON before validating it.

Prerequisites

A WEC Inference API key — see Inference → API Keys.
The model names used here (GLM-5.2, gemma4, Qwen2.5-3B-Instruct, qwen3.5:9B) come from the Models Hub — swap in whatever you've enabled.
Node.js 22+ and your key exported (Promptfoo runs via npx):
```
nvm use 24
export WEC_API_KEY='sk-your-key'
```

tip

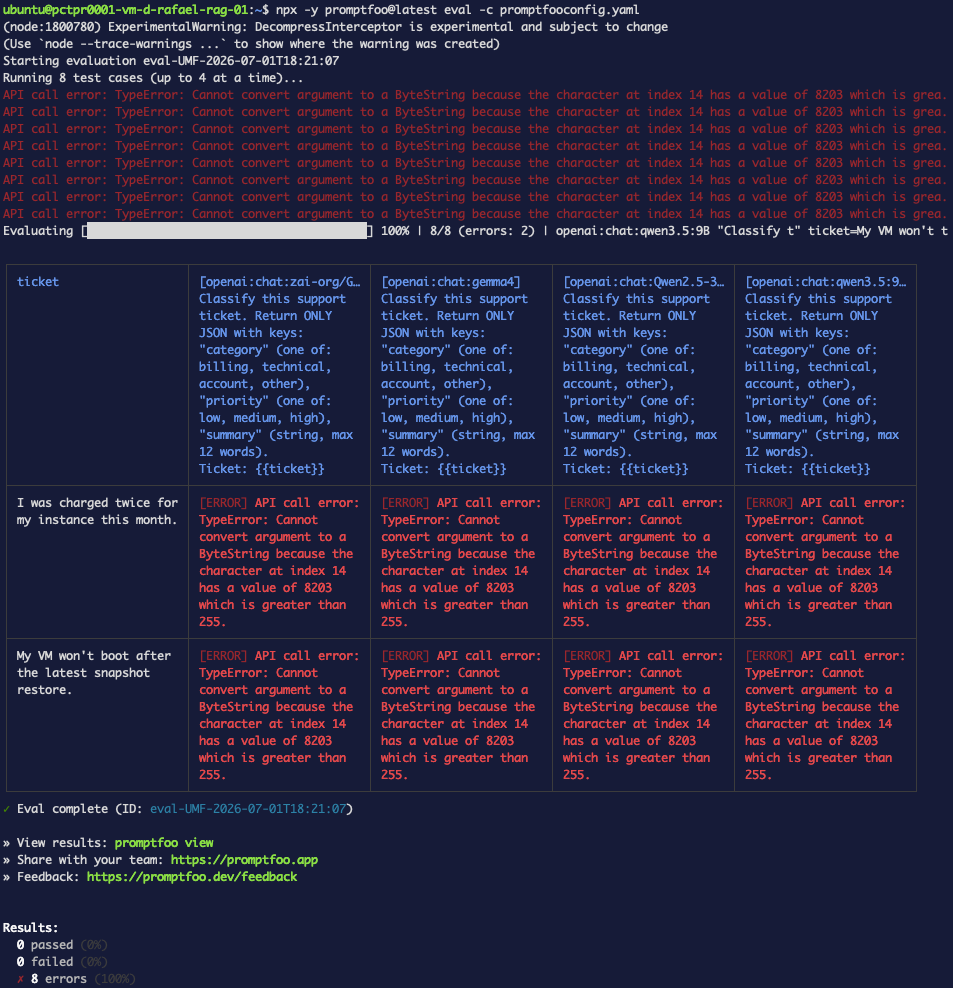

If your first run errors with Cannot convert argument to a ByteString, your pasted key has an invisible character — see Troubleshooting at the bottom.

Step 1 — A strict schema, and a real failure

We'll do something closer to a real workload than "capital of France": classify a support ticket into category, priority, and a short summary. The key upgrade over a basic check is the JSON Schema — it enforces enums, so a model that invents a category fails.

cat > promptfooconfig.yaml <<'EOF'
description: "WEC Inference API — structured output (JSON schema)"
providers:
  - id: openai:chat:zai-org/GLM-5.2
    config:
      apiBaseUrl: https://inference.wiline.com/v1
      apiKeyEnvar: WEC_API_KEY
      temperature: 0
prompts:
  - |
    Classify this support ticket. Return ONLY JSON with keys:
    "category" (one of: billing, technical, account, other),
    "priority" (one of: low, medium, high),
    "summary" (string, max 12 words).
    Ticket: {{ticket}}
defaultTest:
  assert:
    - type: is-json
      value:
        type: object
        required: [category, priority, summary]
        properties:
          category: { type: string, enum: [billing, technical, account, other] }
          priority: { type: string, enum: [low, medium, high] }
          summary: { type: string }
tests:
  - vars: { ticket: "I was charged twice for my instance this month." }
    assert: [{ type: icontains, value: billing }]
  - vars: { ticket: "My VM won't boot after the latest snapshot restore." }
    assert: [{ type: icontains, value: technical }]
EOF
npx -y promptfoo@latest eval -c promptfooconfig.yaml

The result — 50%, and the failure is instructive:

Output
ticket                                    [zai-org/GLM-5.2]
I was charged twice for my instance…      [FAIL] ```json
                                          { "category": "billing", "priority": "high", … }
                                          ```
My VM won't boot after the latest…        [PASS] { "category": "technical", … }

✓ 1 passed (50%)   ✗ 1 failed (50%)

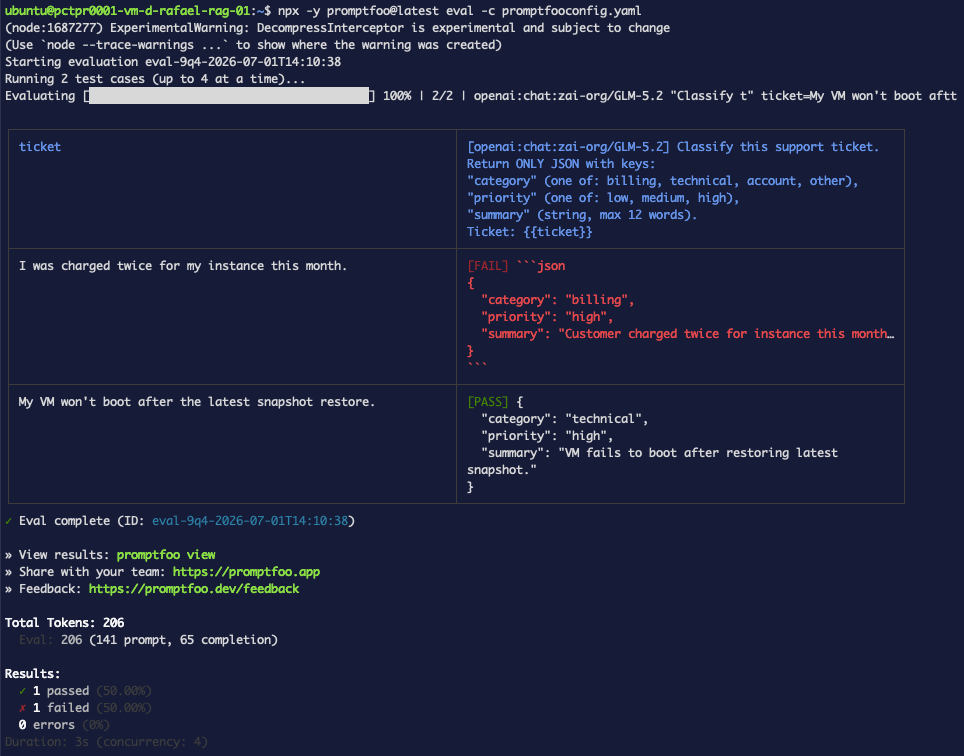

Step 1 — one ticket fails because the JSON is wrapped in markdown fences Figure 1. Same model, same prompt, temperature 0 — one response is clean, the other is wrapped in ```json fences, so is-json can't parse it.

The content is correct; the format isn't. is-json validates both "is it parseable JSON" and "does it match the schema" — and fenced output fails the first test.

Step 2 — Recover fenced output with a `transform`

A transform runs on the model's output before assertions. Here we strip the fences. (This block uses four backticks because the config itself contains triple backticks.)

cat > promptfooconfig.yaml <<'EOF'
description: "WEC Inference API — fence-stripping transform"
providers:
  - id: openai:chat:zai-org/GLM-5.2
    config:
      apiBaseUrl: https://inference.wiline.com/v1
      apiKeyEnvar: WEC_API_KEY
      temperature: 0
prompts:
  - |
    Classify this support ticket. Return ONLY JSON with keys:
    "category" (one of: billing, technical, account, other),
    "priority" (one of: low, medium, high),
    "summary" (string, max 12 words).
    Ticket: {{ticket}}
defaultTest:
  options:
    transform: |
      return output.replace(/```json\n?|\n?```/g, '').trim();
  assert:
    - type: is-json
      value:
        type: object
        required: [category, priority, summary]
        properties:
          category: { type: string, enum: [billing, technical, account, other] }
          priority: { type: string, enum: [low, medium, high] }
          summary: { type: string }
tests:
  - vars: { ticket: "I was charged twice for my instance this month." }
    assert: [{ type: icontains, value: billing }]
  - vars: { ticket: "My VM won't boot after the latest snapshot restore." }
    assert: [{ type: icontains, value: technical }]
EOF
npx -y promptfoo@latest eval -c promptfooconfig.yaml --no-cache

Now both pass — 2/2. The fences are stripped before is-json sees the output.

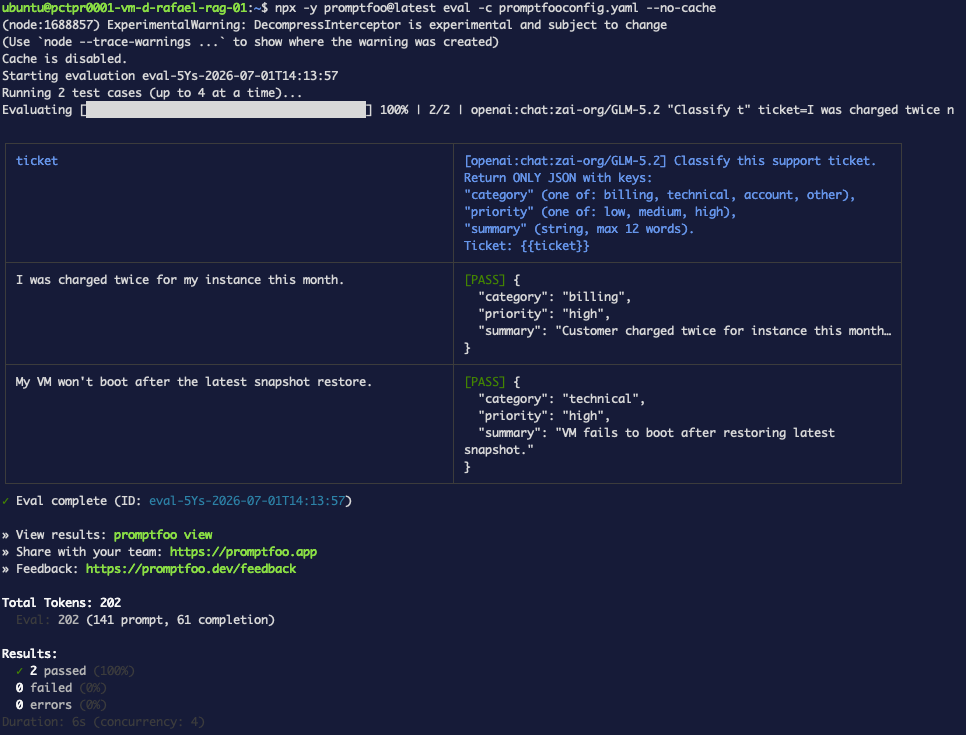

Step 2 — with the fence-stripping transform, both tickets pass Figure 2. The transform removes the code fences, so the previously-failing ticket parses.

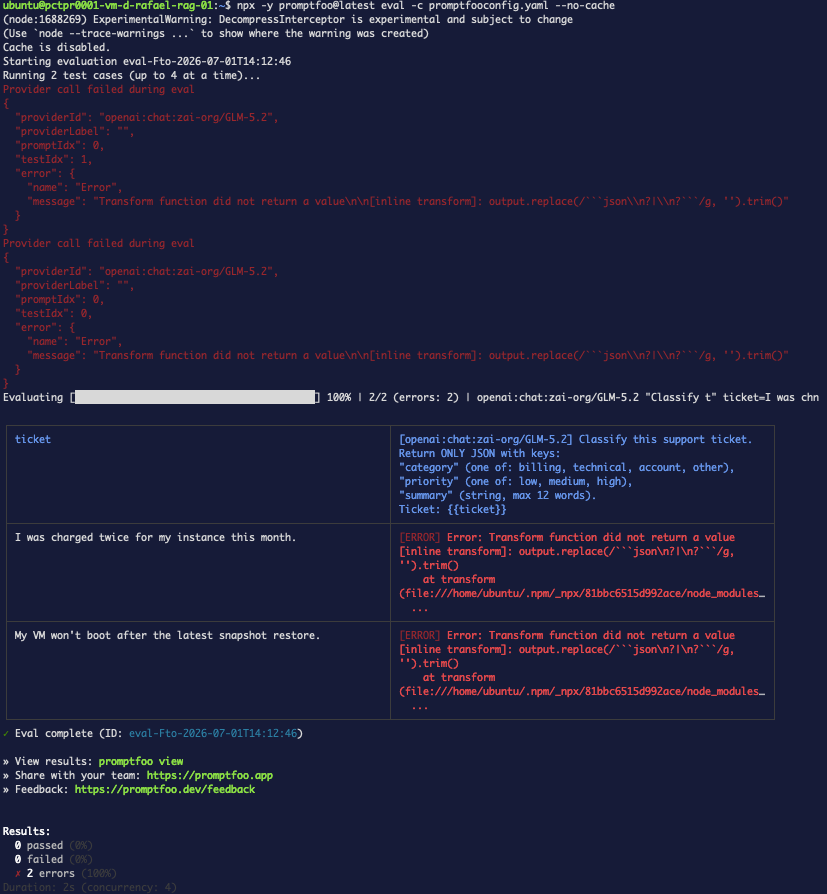

transform needs an explicit return

A multi-line transform is a function body, not an expression — omit return and you get Transform function did not return a value. See Troubleshooting.

Step 3 — The cleaner fix: JSON mode

Rather than clean up after the model, ask the API to only emit valid JSON via response_format. No transform this time:

cat > promptfooconfig.yaml <<'EOF'
description: "WEC Inference API — JSON mode (response_format)"
providers:
  - id: openai:chat:zai-org/GLM-5.2
    config:
      apiBaseUrl: https://inference.wiline.com/v1
      apiKeyEnvar: WEC_API_KEY
      temperature: 0
      response_format: { type: json_object }
prompts:
  - |
    Classify this support ticket. Return ONLY JSON with keys:
    "category" (one of: billing, technical, account, other),
    "priority" (one of: low, medium, high),
    "summary" (string, max 12 words).
    Ticket: {{ticket}}
defaultTest:
  assert:
    - type: is-json
      value:
        type: object
        required: [category, priority, summary]
        properties:
          category: { type: string, enum: [billing, technical, account, other] }
          priority: { type: string, enum: [low, medium, high] }
          summary: { type: string }
tests:
  - vars: { ticket: "I was charged twice for my instance this month." }
    assert: [{ type: icontains, value: billing }]
  - vars: { ticket: "My VM won't boot after the latest snapshot restore." }
    assert: [{ type: icontains, value: technical }]
EOF
npx -y promptfoo@latest eval -c promptfooconfig.yaml --no-cache

2/2 PASS with no transform — looks like JSON mode works.

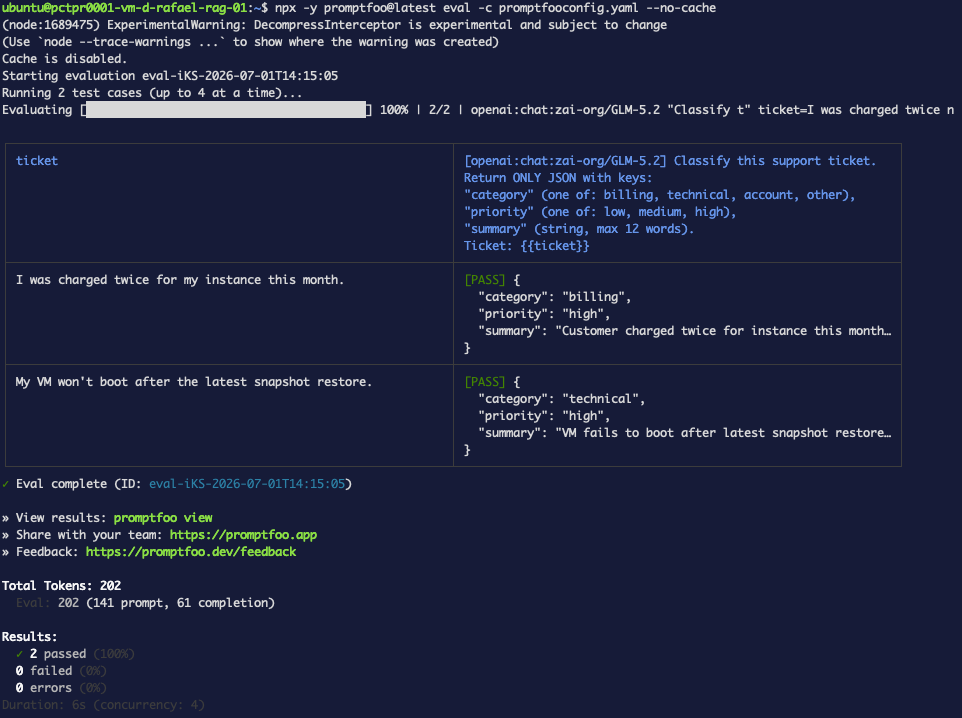

Step 3 — JSON mode passes on GLM-5.2 Figure 3. With response_format: json_object, GLM-5.2 returns clean JSON, no transform needed.

But before trusting response_format, we need to test it across models — because a single green result can be luck, not enforcement.

Step 4 — Reliability matrix across WEC models

Run the JSON-mode config against all four chat models. This is the payoff — a WEC-specific reliability comparison you can't get from a generic leaderboard.

cat > promptfooconfig.yaml <<'EOF'
description: "WEC Inference API — JSON-mode reliability across models"
providers:
  - id: openai:chat:zai-org/GLM-5.2
    config: { apiBaseUrl: https://inference.wiline.com/v1, apiKeyEnvar: WEC_API_KEY, temperature: 0, response_format: { type: json_object } }
  - id: openai:chat:gemma4
    config: { apiBaseUrl: https://inference.wiline.com/v1, apiKeyEnvar: WEC_API_KEY, temperature: 0, response_format: { type: json_object } }
  - id: openai:chat:Qwen2.5-3B-Instruct
    config: { apiBaseUrl: https://inference.wiline.com/v1, apiKeyEnvar: WEC_API_KEY, temperature: 0, response_format: { type: json_object } }
  - id: openai:chat:qwen3.5:9B
    config: { apiBaseUrl: https://inference.wiline.com/v1, apiKeyEnvar: WEC_API_KEY, temperature: 0, response_format: { type: json_object } }
prompts:
  - |
    Classify this support ticket. Return ONLY JSON with keys:
    "category" (one of: billing, technical, account, other),
    "priority" (one of: low, medium, high),
    "summary" (string, max 12 words).
    Ticket: {{ticket}}
defaultTest:
  assert:
    - type: is-json
      value:
        type: object
        required: [category, priority, summary]
        properties:
          category: { type: string, enum: [billing, technical, account, other] }
          priority: { type: string, enum: [low, medium, high] }
          summary: { type: string }
tests:
  - vars: { ticket: "I was charged twice for my instance this month." }
    assert: [{ type: icontains, value: billing }]
  - vars: { ticket: "My VM won't boot after the latest snapshot restore." }
    assert: [{ type: icontains, value: technical }]
EOF
npx -y promptfoo@latest eval -c promptfooconfig.yaml --no-cache

4/8. GLM-5.2 and Qwen2.5-3B pass cleanly; gemma4 and qwen3.5:9B dump their reasoning ("Thinking Process…") instead of JSON — despite response_format being set.

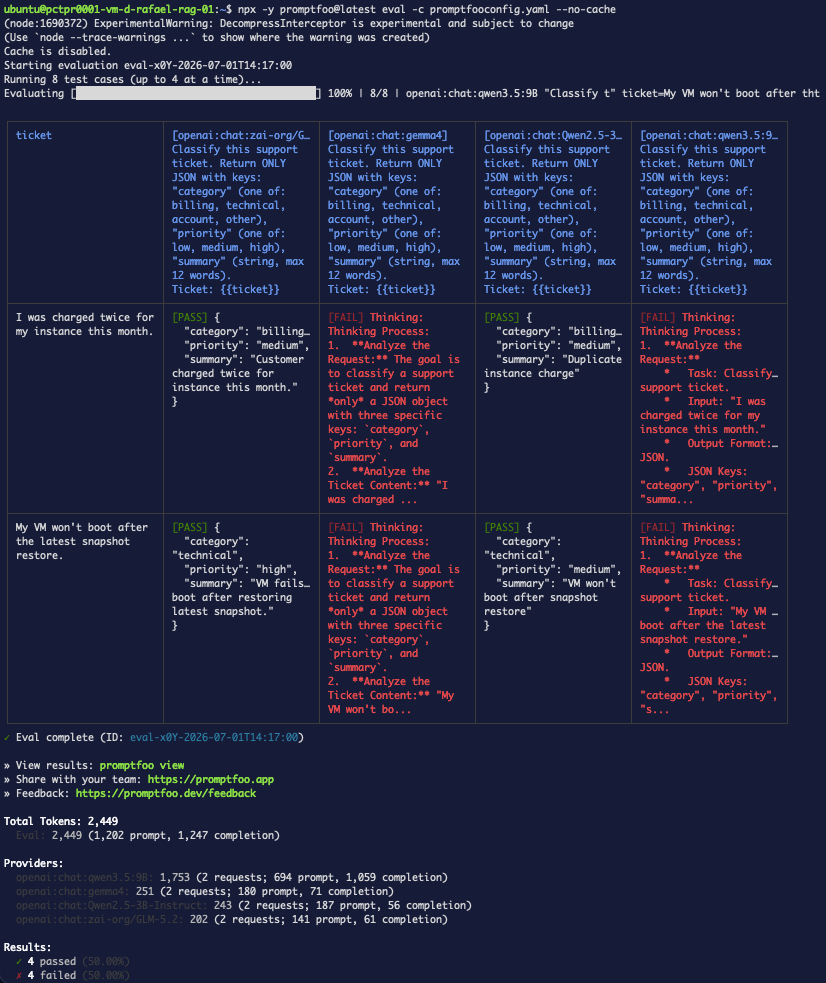

Step 4 — with JSON mode, two models pass and two emit reasoning Figure 4. response_format set on all four — but the two reasoning-oriented models ignore it.

Model	Result	Tokens (2 calls)
`zai-org/GLM-5.2`	✅✅	202
`Qwen2.5-3B-Instruct`	✅✅	243
`gemma4`	❌❌ (reasoning)	251
`qwen3.5:9B`	❌❌ (reasoning)	1,757

Step 5 — Verify: is `response_format` doing anything?

Don't assume the reasoning was caused by JSON mode. Re-run the same matrix without response_format (using the fence-strip transform instead) and compare:

cat > promptfooconfig.yaml <<'EOF'
description: "WEC Inference API — matrix without response_format"
providers:
  - id: openai:chat:zai-org/GLM-5.2
    config: { apiBaseUrl: https://inference.wiline.com/v1, apiKeyEnvar: WEC_API_KEY, temperature: 0 }
  - id: openai:chat:gemma4
    config: { apiBaseUrl: https://inference.wiline.com/v1, apiKeyEnvar: WEC_API_KEY, temperature: 0 }
  - id: openai:chat:Qwen2.5-3B-Instruct
    config: { apiBaseUrl: https://inference.wiline.com/v1, apiKeyEnvar: WEC_API_KEY, temperature: 0 }
  - id: openai:chat:qwen3.5:9B
    config: { apiBaseUrl: https://inference.wiline.com/v1, apiKeyEnvar: WEC_API_KEY, temperature: 0 }
prompts:
  - |
    Classify this support ticket. Return ONLY JSON with keys:
    "category" (one of: billing, technical, account, other),
    "priority" (one of: low, medium, high),
    "summary" (string, max 12 words).
    Ticket: {{ticket}}
defaultTest:
  options:
    transform: |
      return output.replace(/```json\n?|\n?```/g, '').trim();
  assert:
    - type: is-json
      value:
        type: object
        required: [category, priority, summary]
        properties:
          category: { type: string, enum: [billing, technical, account, other] }
          priority: { type: string, enum: [low, medium, high] }
          summary: { type: string }
tests:
  - vars: { ticket: "I was charged twice for my instance this month." }
    assert: [{ type: icontains, value: billing }]
  - vars: { ticket: "My VM won't boot after the latest snapshot restore." }
    assert: [{ type: icontains, value: technical }]
EOF
npx -y promptfoo@latest eval -c promptfooconfig.yaml --no-cache

Still 4/8 — the exact same models fail. So response_format changed nothing: on WEC today it's effectively a no-op (the backend isn't enforcing JSON mode). The reasoning behavior belongs to the models, not to the flag.

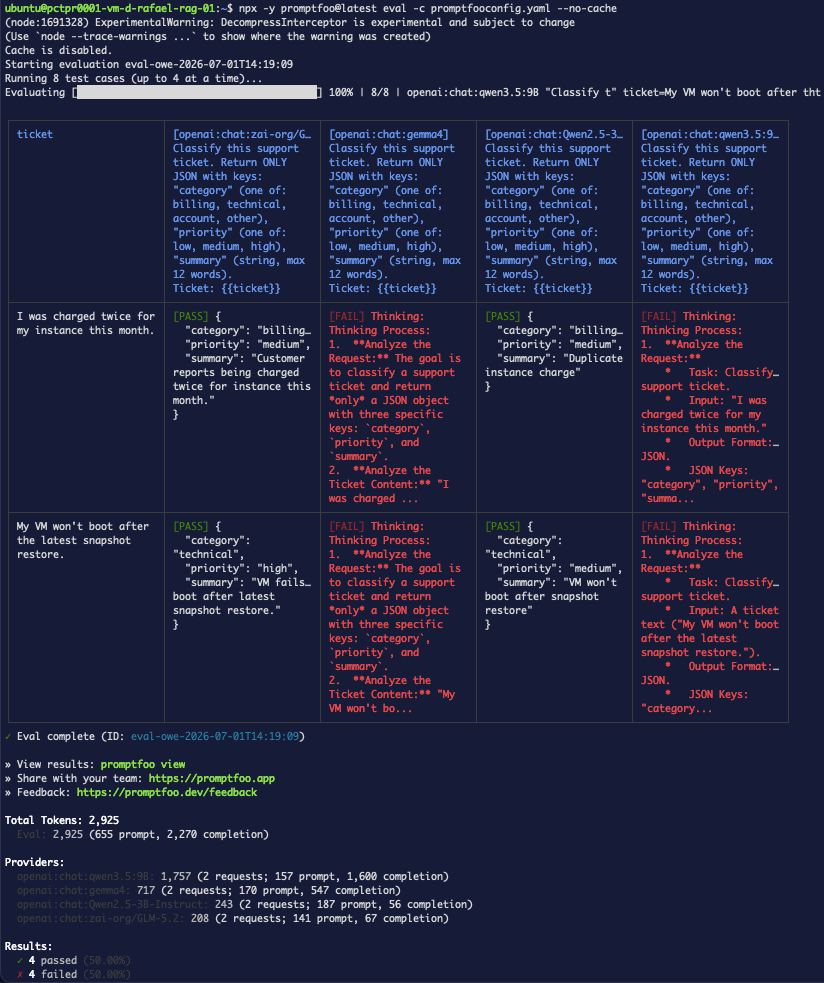

Step 5 — same 4/8 without response_format, proving it was a no-op Figure 5. Identical result without JSON mode — the flag wasn't doing anything.

note

Lesson worth its own callout: don't attribute a result to a change until you've tested the change in isolation. One extra run turned a wrong conclusion into the right one.

Step 6 — A more robust transform: extract the JSON

The reasoning models do emit JSON — it's just buried in prose. Instead of stripping fences, extract the first { … } block from anywhere in the output:

cat > promptfooconfig.yaml <<'EOF'
description: "WEC Inference API — JSON extraction transform"
providers:
  - id: openai:chat:zai-org/GLM-5.2
    config: { apiBaseUrl: https://inference.wiline.com/v1, apiKeyEnvar: WEC_API_KEY, temperature: 0 }
  - id: openai:chat:gemma4
    config: { apiBaseUrl: https://inference.wiline.com/v1, apiKeyEnvar: WEC_API_KEY, temperature: 0 }
  - id: openai:chat:Qwen2.5-3B-Instruct
    config: { apiBaseUrl: https://inference.wiline.com/v1, apiKeyEnvar: WEC_API_KEY, temperature: 0 }
  - id: openai:chat:qwen3.5:9B
    config: { apiBaseUrl: https://inference.wiline.com/v1, apiKeyEnvar: WEC_API_KEY, temperature: 0 }
prompts:
  - |
    Classify this support ticket. Return ONLY JSON with keys:
    "category" (one of: billing, technical, account, other),
    "priority" (one of: low, medium, high),
    "summary" (string, max 12 words).
    Ticket: {{ticket}}
defaultTest:
  options:
    transform: |
      const m = output.match(/\{[\s\S]*\}/);
      return m ? m[0] : output;
  assert:
    - type: is-json
      value:
        type: object
        required: [category, priority, summary]
        properties:
          category: { type: string, enum: [billing, technical, account, other] }
          priority: { type: string, enum: [low, medium, high] }
          summary: { type: string }
tests:
  - vars: { ticket: "I was charged twice for my instance this month." }
    assert: [{ type: icontains, value: billing }]
  - vars: { ticket: "My VM won't boot after the latest snapshot restore." }
    assert: [{ type: icontains, value: technical }]
EOF
npx -y promptfoo@latest eval -c promptfooconfig.yaml --no-cache

7/8 — a big jump. gemma4 and Qwen2.5 fully recover; qwen3.5:9B recovers one of two. The one remaining failure is telling: that response emitted JSON and then kept reasoning (with more braces), so the greedy { … } match over-captured and produced invalid JSON.

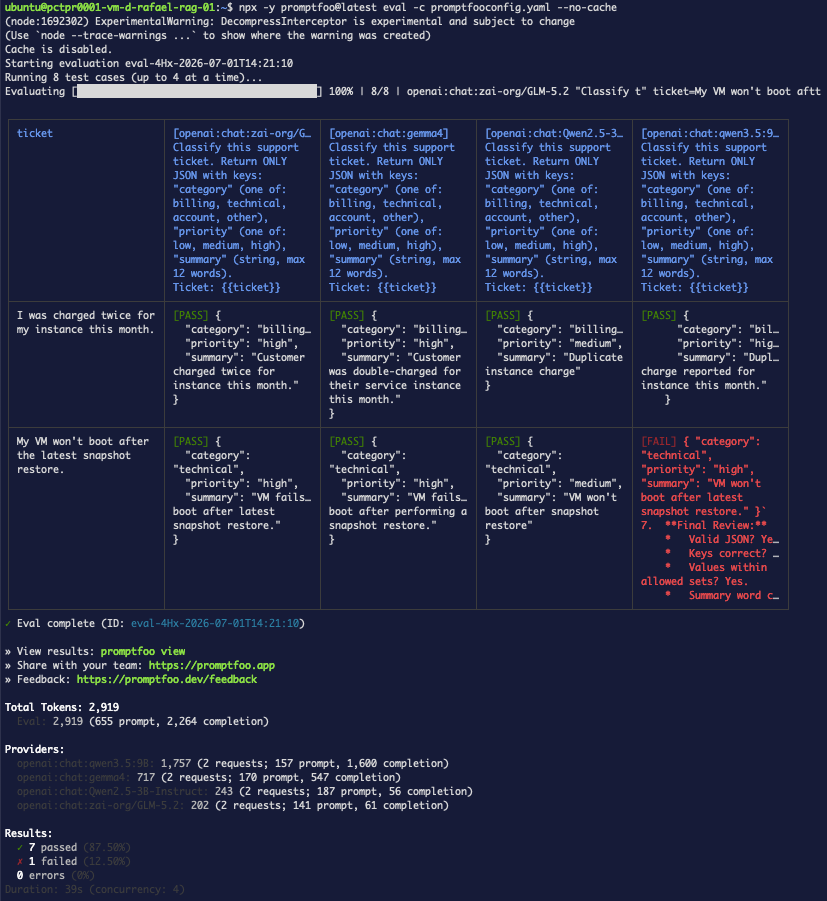

Step 6 — JSON extraction rescues most models (7/8) Figure 6. Extracting the JSON block recovers the chatty models — but it's a heuristic, not a guarantee (note the one over-capture failure).

Step 7 — See it in the browser

The terminal table is fine for a quick read, but the web report is where a matrix like this comes alive:

npx -y promptfoo@latest view

The dashboard at the top gives you the model-reliability picture at a glance — the Pass Rate (%) bars are the ones to watch here: three models tall, qwen3.5:9B sitting at 50%. Below, each provider is a column you can expand to the full response (that's how we pulled the over-capture failure in Figure 10 — the terminal truncates it).

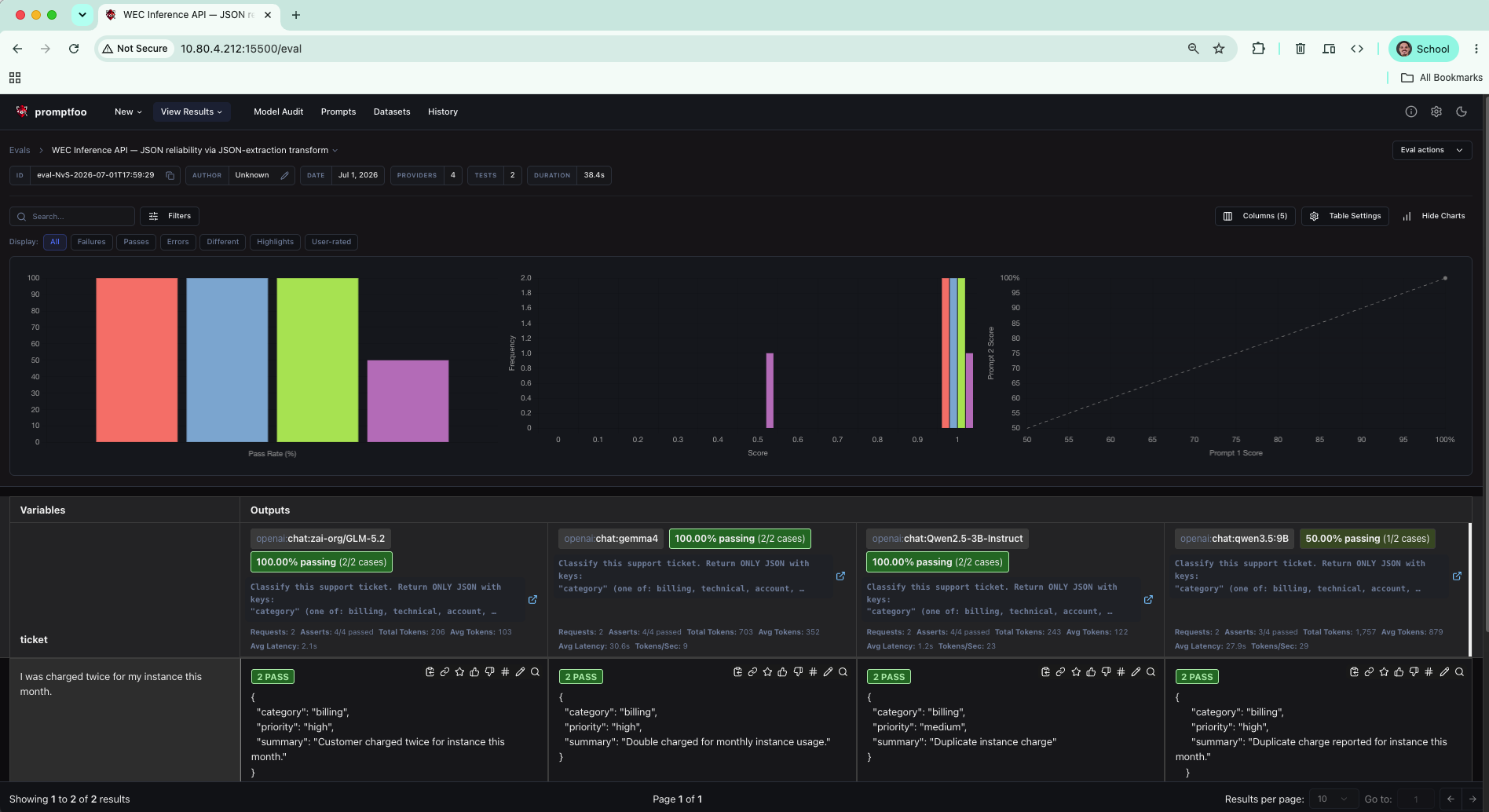

The Promptfoo report: Pass Rate bars per model and expandable per-case output Figure 7. The report's dashboard — the Pass Rate bars turn the model matrix into a one-glance ranking, and any cell expands to the full output.

note

The report's other charts (the prompt-vs-prompt scatter) shine when you're A/B-testing prompts, not models — a good subject for a later post. For a single-prompt, multi-model run like this one, the Pass Rate bars are the chart that matters.

Step 8 — Gate it in CI

Promptfoo exits non-zero when tests fail, so a one-liner is a gate (put it in a script or Makefile, never your interactive shell):

npx -y promptfoo@latest eval -c promptfooconfig.yaml \
  && echo "✅ passed" \
  || { echo "❌ eval failed — blocking"; exit 1; }

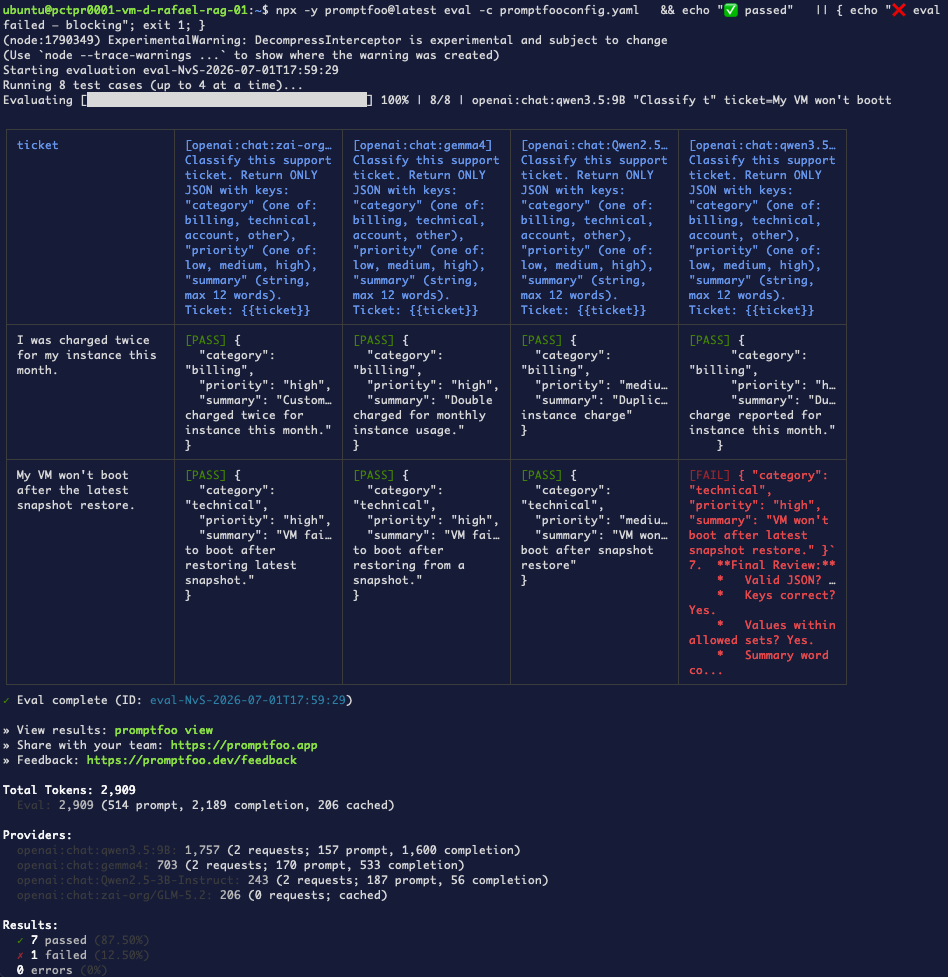

The gate blocking on a failed eval Figure 8. A real failure blocks: 7/8 passed, but qwen3.5:9B's over-capture (from Step 6) trips the gate — the non-zero exit code is the signal CI uses to block a PR.

On GitLab:

eval:
  image: node:22
  script:
    - npx -y promptfoo@latest eval -c promptfooconfig.yaml
  # WEC_API_KEY set as a masked CI/CD variable — never committed.

What we learned

Model choice dominates. GLM-5.2 and Qwen2.5-3B reliably produce schema-valid JSON and are ~8× cheaper than the reasoning models. For structured output on WEC, start there.
Reasoning models (qwen3.5:9B, and gemma4 on the day we tested) narrate their thinking and cost far more — poor fits for strict JSON.
A transform is your safety net — fence-stripping recovers the common case; JSON extraction recovers most chatty output — but extraction is a heuristic that can over-capture.
response_format is a no-op on WEC today — verified by isolating it. Don't rely on it; validate instead.
The eval is the point. Every one of these surprises was caught automatically, before it reached production.

Troubleshooting

"Transform function did not return a value"

A multi-line transform is compiled as a function body, so it needs an explicit return. output.replace(...) on its own returns nothing.

options:
  transform: |
    return output.replace(/.../g, '').trim();   # note the `return`

The transform-return error Figure 9. Without return, Promptfoo errors instead of transforming.

A model returns reasoning around the JSON

If is-json fails with "Expected output to be valid JSON" and the response contains a "Thinking Process…" / "Final Review…" narration, you're using a reasoning model. Sometimes it emits only reasoning; sometimes — as below — it emits valid JSON and then keeps talking, so even the Step 6 extraction over-captures and the parse fails. Options: switch to GLM-5.2 / Qwen2.5-3B, or accept that the extraction transform is best-effort, not a guarantee.

Figure 10. The failing case expanded in the report: qwen3.5:9B returned valid JSON and then kept reasoning ("7. Final Review…"), so the extraction over-captured and the assertion reports "Expected output to be valid JSON."

"Cannot convert argument to a ByteString"

Your pasted API key contains an invisible Unicode character. Strip it:

export WEC_API_KEY=$(printf '%s' "$WEC_API_KEY" | LC_ALL=C tr -cd '[:print:]')

The ByteString error from an invisible key character Figure 11. A stray character in the key trips the HTTP header before any request is sent.

What's next

DeepEval regression suites — turn these checks into a versioned, CI-gated regression run.
Tracing — see why a response went wrong, not just that it failed.

Have a structured-output case that still slips through? That's the next test to add.

How the eval works​

Prerequisites​

Step 1 — A strict schema, and a real failure​

Step 2 — Recover fenced output with a transform​

Step 3 — The cleaner fix: JSON mode​

Step 4 — Reliability matrix across WEC models​

Step 5 — Verify: is response_format doing anything?​

Step 6 — A more robust transform: extract the JSON​

Step 7 — See it in the browser​

Step 8 — Gate it in CI​

What we learned​

Troubleshooting​

"Transform function did not return a value"​

A model returns reasoning around the JSON​

"Cannot convert argument to a ByteString"​

What's next​
